Description

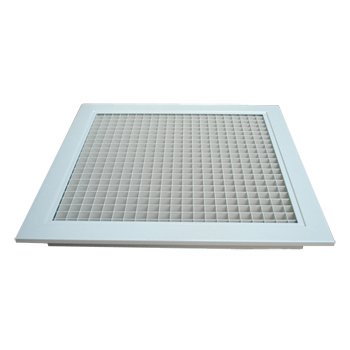

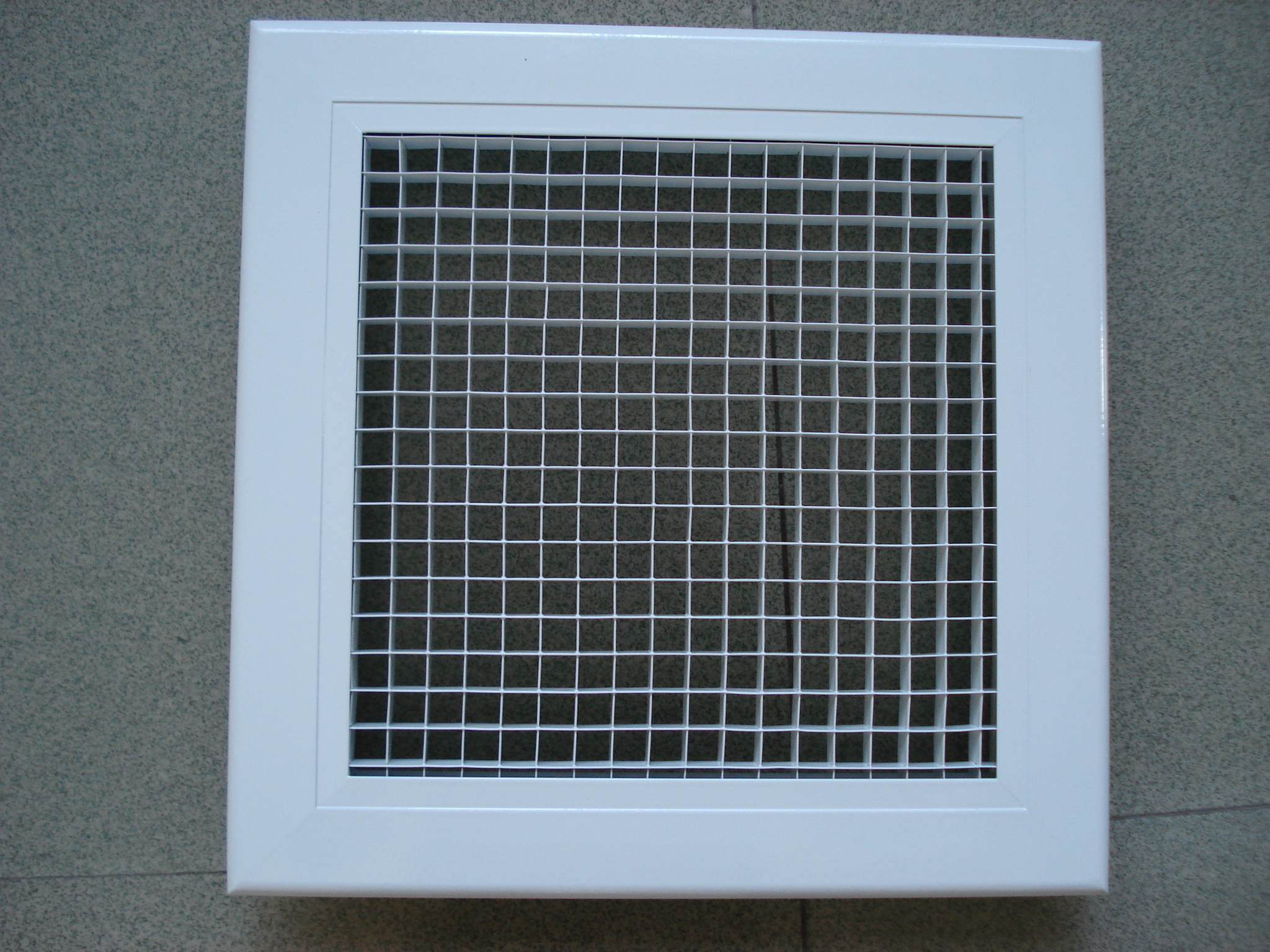

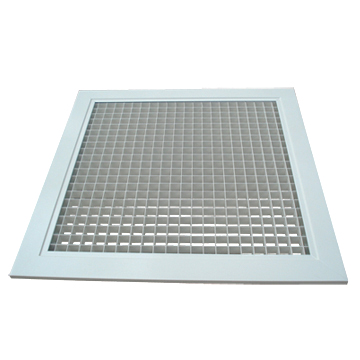

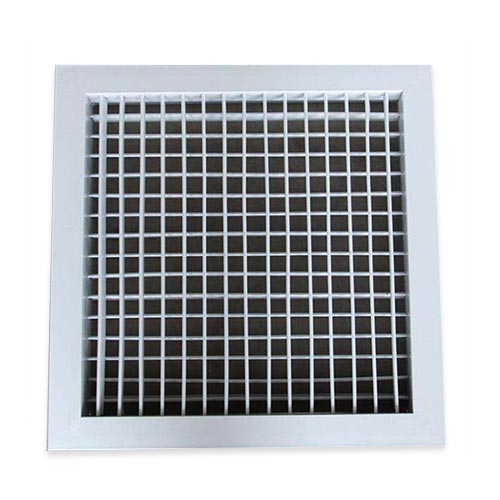

Egg crate grilles are usually fixed on the ceiling for exhaust applications. Airmaster Equipments Emirates is the suppliers and manufacturers of Egg crate grilles in UAE.

MODEL : GEG-A

• Frame is construction from the high quality extruded aluminum profiles with the advantage of corrosion resistance and rigidity.
• Aluminium egg crate core of 12.5 mm x 12.5 mm size is fixed rigidly to the frame.
• Egg Crate Grilles fixed with opposed blade damper for controlling exhaust air flow.
• Foam gasket is sealed around the back of the frame as option to avoid air leakage.
• Rigid construction provides noiseless performance.
• Designed for return and exhaust applications for conditioned space.
• Model GEC-A is available with Damper.
  • Damper blades are fixed to the frame by nylon bushes.
  • Damper blades can be screw operated from the face opening.

MODEL : GEG-A – Construction same as AER, without opposed blade damper.

Standard Sizes:

• Egg Crate Grilles is available in square and rectagular sizes.
• Non standard sizes available as option.


  Width in mm	150	225	300	375	450	525	600
  Height in mm	150	225	300	375	450	525	600

Fixing details:

Screw fixing

Concealed fixing

Product summary:

Model Number	Product Description	Remarks
GEC	Egg Crate Grille/Register	Egg Crate core 12.5mmx12.5mmmm

Product Order Checklist

• Model
• Size
• Quantity
• Colour (RAL 9010,9016,Anodized aluminium finish or other RAL colours)
• Fixing type (screw or concealed)
